XML Schema
Schema Comments:
Processing Instructions
Schema has:
 32element definitions,  0 global attribute definitions,  117 element attribute definitions,  2 datatype definitions.
Possible root elements: ArgusDataStream,

Element list

Element ArgusDataStream

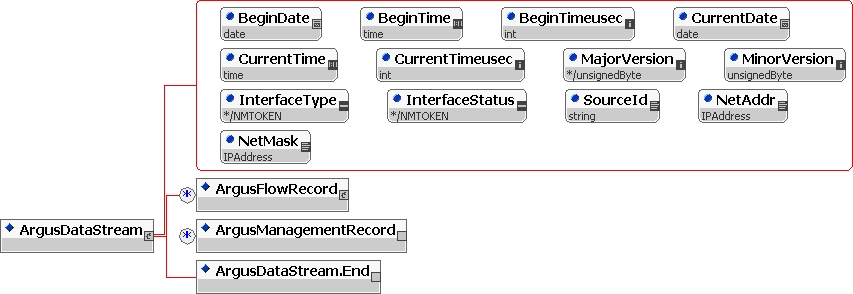

diagram
description
attributes BeginDate   BeginTime   BeginTimeusec   CurrentDate   CurrentTime   CurrentTimeusec   MajorVersion   MinorVersion   InterfaceType   InterfaceStatus   SourceId   NetAddr   NetMask
uses ArgusFlowRecord * , ArgusManagementRecord * , ArgusDataStream.End

used by
substitution hierarchy ArgusDataStream
content sequence

Attribute Datatype Use Values Default Comments
BeginDate { xsd:date } required
BeginTime { xsd:time } required
BeginTimeusec { xsd:int } required
CurrentDate { xsd:date } required
CurrentTime { xsd:time } required
CurrentTimeusec { xsd:int } required
MajorVersion { } {} required range: [2, UNBOUNDED]
MinorVersion { xsd:unsignedByte } required
InterfaceType { } {} required possible values: DLT_NULL | DLT_EN10MB | DLT_EN3MB | DLT_AX25 | DLT_PRONET | DLT_CHAOS | DLT_IEEE802 | DLT_ARCNET | DLT_SLIP | DLT_PPP | DLT_FDDI | DLT_ATM_RFC1483 | DLT_RAW | DLT_SLIP_BSDOS | DLT_PPP_BSDOS | DLT_ATM_CLIP | DLT_PPP_SERIAL | DLT_C_HDLC | DLT_IEE802_11
InterfaceStatus { } {} required possible values: Up | Down
SourceId { xsd:string } required
NetAddr { IPAddress } required
NetMask { IPAddress } required

source
- < xsd:element name =" ArgusDataStream " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" ArgusFlowRecord " minOccurs =" 0 " maxOccurs =" unbounded " />
  < xsd:element ref =" ArgusManagementRecord " minOccurs =" 0 " maxOccurs =" unbounded " />
  < xsd:element ref =" ArgusDataStream.End " />
  </ xsd:sequence >
  < xsd:attribute name =" BeginDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" BeginTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" BeginTimeusec " use =" required " type =" xsd:int " />
  < xsd:attribute name =" CurrentDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" CurrentTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" CurrentTimeusec " use =" required " type =" xsd:int " />
- < xsd:attribute name =" MajorVersion " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:unsignedByte " >
  < xsd:minInclusive value =" 2 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" MinorVersion " use =" required " type =" xsd:unsignedByte " />
- < xsd:attribute name =" InterfaceType " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" DLT_NULL " />
  < xsd:enumeration value =" DLT_EN10MB " />
  < xsd:enumeration value =" DLT_EN3MB " />
  < xsd:enumeration value =" DLT_AX25 " />
  < xsd:enumeration value =" DLT_PRONET " />
  < xsd:enumeration value =" DLT_CHAOS " />
  < xsd:enumeration value =" DLT_IEEE802 " />
  < xsd:enumeration value =" DLT_ARCNET " />
  < xsd:enumeration value =" DLT_SLIP " />
  < xsd:enumeration value =" DLT_PPP " />
  < xsd:enumeration value =" DLT_FDDI " />
  < xsd:enumeration value =" DLT_ATM_RFC1483 " />
  < xsd:enumeration value =" DLT_RAW " />
  < xsd:enumeration value =" DLT_SLIP_BSDOS " />
  < xsd:enumeration value =" DLT_PPP_BSDOS " />
  < xsd:enumeration value =" DLT_ATM_CLIP " />
  < xsd:enumeration value =" DLT_PPP_SERIAL " />
  < xsd:enumeration value =" DLT_C_HDLC " />
  < xsd:enumeration value =" DLT_IEE802_11 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
- < xsd:attribute name =" InterfaceStatus " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Up " />
  < xsd:enumeration value =" Down " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SourceId " use =" required " type =" xsd:string " />
  < xsd:attribute name =" NetAddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" NetMask " use =" required " type =" IPAddress " />
  </ xsd:complexType >
  </ xsd:element >

Element ArgusDataStream.End

diagram
description
attributes count
uses Does not reference other elements.

used by ArgusDataStream,
content sequence (default)

Attribute Datatype Use Values Default Comments
count { xsd:string } required

source
- < xsd:element name =" ArgusDataStream.End " >
- < xsd:complexType >
  < xsd:attribute name =" count " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element ArgusFlowRecord

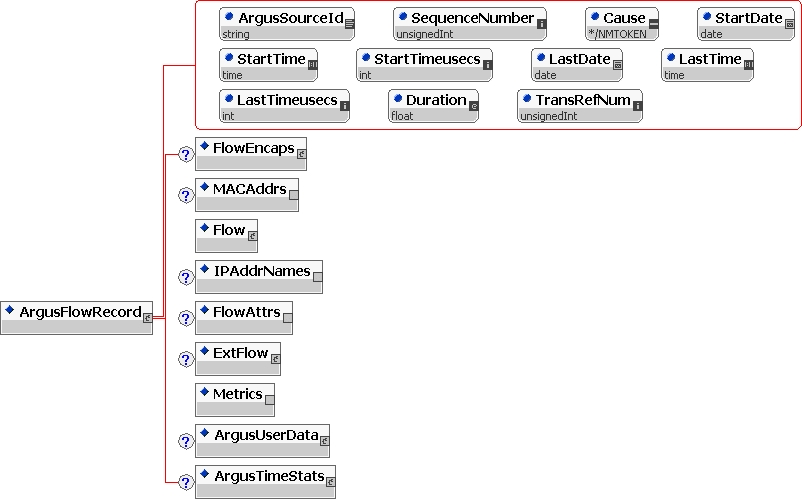

diagram
description
attributes ArgusSourceId   SequenceNumber   Cause   StartDate   StartTime   StartTimeusecs   LastDate   LastTime   LastTimeusecs   Duration   TransRefNum
uses FlowEncaps ? , MACAddrs ? , Flow, IPAddrNames ? , FlowAttrs ? , ExtFlow ? , Metrics, ArgusUserData ? , ArgusTimeStats ?

used by ArgusDataStream,
substitution hierarchy ArgusFlowRecord
content sequence

Attribute Datatype Use Values Default Comments
ArgusSourceId { xsd:string } required
SequenceNumber { xsd:unsignedInt } required
Cause { } {} required possible values: Start | Status | Stop | Shutdown | Timeout | Error | Unknown
StartDate { xsd:date } required
StartTime { xsd:time } required
StartTimeusecs { xsd:int } required
LastDate { xsd:date } required
LastTime { xsd:time } required
LastTimeusecs { xsd:int } required
Duration { xsd:float } required
TransRefNum { xsd:unsignedInt } required

source
- < xsd:element name =" ArgusFlowRecord " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" FlowEncaps " minOccurs =" 0 " />
  < xsd:element ref =" MACAddrs " minOccurs =" 0 " />
  < xsd:element ref =" Flow " />
  < xsd:element ref =" IPAddrNames " minOccurs =" 0 " />
  < xsd:element ref =" FlowAttrs " minOccurs =" 0 " />
  < xsd:element ref =" ExtFlow " minOccurs =" 0 " />
  < xsd:element ref =" Metrics " />
  < xsd:element ref =" ArgusUserData " minOccurs =" 0 " />
  < xsd:element ref =" ArgusTimeStats " minOccurs =" 0 " />
  </ xsd:sequence >
  < xsd:attribute name =" ArgusSourceId " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SequenceNumber " use =" required " type =" xsd:unsignedInt " />
- < xsd:attribute name =" Cause " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Start " />
  < xsd:enumeration value =" Status " />
  < xsd:enumeration value =" Stop " />
  < xsd:enumeration value =" Shutdown " />
  < xsd:enumeration value =" Timeout " />
  < xsd:enumeration value =" Error " />
  < xsd:enumeration value =" Unknown " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" StartDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" StartTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" StartTimeusecs " use =" required " type =" xsd:int " />
  < xsd:attribute name =" LastDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" LastTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" LastTimeusecs " use =" required " type =" xsd:int " />
  < xsd:attribute name =" Duration " use =" required " type =" xsd:float " />
  < xsd:attribute name =" TransRefNum " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >

Element ArgusManagementRecord

diagram
description
attributes
uses Does not reference other elements.

used by ArgusDataStream,
content sequence (default)

source
- < xsd:element name =" ArgusManagementRecord " >
  < xsd:complexType />
  </ xsd:element >

Element ArgusTimeStats

diagram
description
attributes
uses SrcActive ? , SrcIdle ? , DstActive ? , DstIdle ?

used by ArgusFlowRecord,
content sequence

source
- < xsd:element name =" ArgusTimeStats " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" SrcActive " minOccurs =" 0 " />
  < xsd:element ref =" SrcIdle " minOccurs =" 0 " />
  < xsd:element ref =" DstActive " minOccurs =" 0 " />
  < xsd:element ref =" DstIdle " minOccurs =" 0 " />
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >

Element ArgusUserData

diagram
description
attributes
uses SrcData ? , DstData ?

used by ArgusFlowRecord,
content sequence

source
- < xsd:element name =" ArgusUserData " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" SrcData " minOccurs =" 0 " />
  < xsd:element ref =" DstData " minOccurs =" 0 " />
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >

Element Arp

diagram
description
attributes SrcArpAddr   TargetArpAaddr   ArpMacAddr
uses Does not reference other elements.

used by Flow,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcArpAddr { IPAddress } required
TargetArpAaddr { IPAddress } required
ArpMacAddr { EthernetAddress } required

source
- < xsd:element name =" Arp " >
- < xsd:complexType >
  < xsd:attribute name =" SrcArpAddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" TargetArpAaddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" ArpMacAddr " use =" required " type =" EthernetAddress " />
  </ xsd:complexType >
  </ xsd:element >

Element DstActive

diagram
description
attributes StdDev   MinUsec   MaxUsec   MeanUsec   n
uses Does not reference other elements.

used by ArgusTimeStats,
content sequence (default)

Attribute Datatype Use Values Default Comments
StdDev { xsd:string } required
MinUsec { xsd:unsignedInt } required
MaxUsec { xsd:unsignedInt } required
MeanUsec { xsd:unsignedInt } required
n { xsd:int } required

source
- < xsd:element name =" DstActive " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >

Element DstData

diagram
description
attributes Data-Ascii   Length
uses Does not reference other elements.

used by ArgusUserData,
content sequence (default)

Attribute Datatype Use Values Default Comments
Data-Ascii { xsd:string } required
Length { xsd:string } required

source
- < xsd:element name =" DstData " >
- < xsd:complexType >
  < xsd:attribute name =" Data-Ascii " use =" required " type =" xsd:string " />
  < xsd:attribute name =" Length " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element DstIdle

diagram
description
attributes StdDev   MinUsec   MaxUsec   MeanUsec   n
uses Does not reference other elements.

used by ArgusTimeStats,
content sequence (default)

Attribute Datatype Use Values Default Comments
StdDev { xsd:string } required
MinUsec { xsd:unsignedInt } required
MaxUsec { xsd:unsignedInt } required
MeanUsec { xsd:unsignedInt } required
n { xsd:int } required

source
- < xsd:element name =" DstIdle " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >

Element Esp

diagram
description
attributes Proto   SrcIPAddr   DstIPAddr   Spi
uses Does not reference other elements.

used by Flow,
substitution hierarchy Esp
content sequence (default)

Attribute Datatype Use Values Default Comments
Proto { } {} required possible values: esp | 50
SrcIPAddr { IPAddress } optional
DstIPAddr { IPAddress } optional
Spi { xsd:unsignedShort } optional

source
- < xsd:element name =" Esp " >
- < xsd:complexType >
- < xsd:attribute name =" Proto " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" esp " />
  < xsd:enumeration value =" 50 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" Spi " use =" optional " type =" xsd:unsignedShort " />
  </ xsd:complexType >
  </ xsd:element >

Element EspExtFlow

diagram
description
attributes SrcEspLastSeq   SrcEspDroppedPkts   DstEspLastSeq   DstEspDroppedPkts
uses Does not reference other elements.

used by ExtFlow,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcEspLastSeq { xsd:unsignedInt } required
SrcEspDroppedPkts { xsd:unsignedInt } required
DstEspLastSeq { xsd:unsignedInt } required
DstEspDroppedPkts { xsd:unsignedInt } required

source
- < xsd:element name =" EspExtFlow " >
- < xsd:complexType >
  < xsd:attribute name =" SrcEspLastSeq " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcEspDroppedPkts " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstEspLastSeq " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstEspDroppedPkts " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >

Element ExtFlow

diagram
description
attributes
uses TCPExtFlow, ICMPExtFlow, FragExtFlow, EspExtFlow

used by ArgusFlowRecord,
content choice

source
- < xsd:element name =" ExtFlow " >
- < xsd:complexType >
- < xsd:choice >
  < xsd:element ref =" TCPExtFlow " />
  < xsd:element ref =" ICMPExtFlow " />
  < xsd:element ref =" FragExtFlow " />
  < xsd:element ref =" EspExtFlow " />
  </ xsd:choice >
  </ xsd:complexType >
  </ xsd:element >

Element Flow

diagram
description
attributes
uses ICMP, Mac, Arp, Rarp, Esp, IP

used by ArgusFlowRecord,
content sequence

source
- < xsd:element name =" Flow " >
- < xsd:complexType >
- < xsd:sequence >
- < xsd:choice minOccurs =" 0 " maxOccurs =" unbounded " >
  < xsd:element ref =" ICMP " />
  < xsd:element ref =" Mac " />
  < xsd:element ref =" Arp " />
  < xsd:element ref =" Rarp " />
  < xsd:element ref =" Esp " />
  < xsd:element ref =" IP " />
  </ xsd:choice >
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >

Element FlowAttrs

diagram
description
attributes Status   SrcOptions   DstOptions   SrcTOS   DstTOS   SrcTTL   DstTTL
uses Does not reference other elements.

used by ArgusFlowRecord,
content sequence (default)

Attribute Datatype Use Values Default Comments
Status { xsd:string } optional
SrcOptions { xsd:string } optional
DstOptions { xsd:string } optional
SrcTOS { xsd:hexBinary } required
DstTOS { xsd:string } required
SrcTTL { xsd:string } required
DstTTL { xsd:string } required

source
- < xsd:element name =" FlowAttrs " >
- < xsd:complexType >
  < xsd:attribute name =" Status " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcOptions " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" DstOptions " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcTOS " use =" required " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstTOS " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcTTL " use =" required " type =" xsd:string " />
  < xsd:attribute name =" DstTTL " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element FlowEncaps

diagram
description
attributes
uses MPLS, VLAN

used by ArgusFlowRecord,
content choice

source
- < xsd:element name =" FlowEncaps " >
- < xsd:complexType >
- < xsd:choice >
  < xsd:element ref =" MPLS " />
  < xsd:element ref =" VLAN " />
  </ xsd:choice >
  </ xsd:complexType >
  </ xsd:element >

Element FragExtFlow

diagram
description
attributes
uses Does not reference other elements.

used by ExtFlow,
content sequence (default)

source
- < xsd:element name =" FragExtFlow " >
  < xsd:complexType />
  </ xsd:element >

Element ICMP

diagram
description
attributes Proto   SrcIPAddr   IcmpType   DstIPAddr   IcmpCode   IcmpData
uses Does not reference other elements.

used by Flow,
substitution hierarchy ICMP
content sequence (default)

Attribute Datatype Use Values Default Comments
Proto { xsd:string } required
SrcIPAddr { IPAddress } optional
IcmpType { } {} required possible values: ECR | UR | SRC | RED | AHA | ECO | RTA | RTS | TXD | PAR | TST | TSR | IRQ | IRR | MAS | MSR | SEC | ROB | TRC | DCE | MHR | WAY | IAH | MRQ | MRP | DNQ | NDP | SKP | PHO | UNK
DstIPAddr { IPAddress } optional
IcmpCode { } {} optional possible values: Net | Host | Proto | Port | NeedFrag | SrcRoute | Net Unkn | Host Unkn | Isolated | Net Prohib | Host Prohib | Tos Net | Tos Host | Filter | Host Prec | Prec Xoff | not common | normal | reassembly | in transit | option | length | pointer
IcmpData { xsd:string } optional

source
- < xsd:element name =" ICMP " >
- < xsd:complexType >
  < xsd:attribute name =" Proto " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
- < xsd:attribute name =" IcmpType " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" ECR " />
  < xsd:enumeration value =" UR " />
  < xsd:enumeration value =" SRC " />
  < xsd:enumeration value =" RED " />
  < xsd:enumeration value =" AHA " />
  < xsd:enumeration value =" ECO " />
  < xsd:enumeration value =" RTA " />
  < xsd:enumeration value =" RTS " />
  < xsd:enumeration value =" TXD " />
  < xsd:enumeration value =" PAR " />
  < xsd:enumeration value =" TST " />
  < xsd:enumeration value =" TSR " />
  < xsd:enumeration value =" IRQ " />
  < xsd:enumeration value =" IRR " />
  < xsd:enumeration value =" MAS " />
  < xsd:enumeration value =" MSR " />
  < xsd:enumeration value =" SEC " />
  < xsd:enumeration value =" ROB " />
  < xsd:enumeration value =" TRC " />
  < xsd:enumeration value =" DCE " />
  < xsd:enumeration value =" MHR " />
  < xsd:enumeration value =" WAY " />
  < xsd:enumeration value =" IAH " />
  < xsd:enumeration value =" MRQ " />
  < xsd:enumeration value =" MRP " />
  < xsd:enumeration value =" DNQ " />
  < xsd:enumeration value =" NDP " />
  < xsd:enumeration value =" SKP " />
  < xsd:enumeration value =" PHO " />
  < xsd:enumeration value =" UNK " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
- < xsd:attribute name =" IcmpCode " use =" optional " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Net " />
  < xsd:enumeration value =" Host " />
  < xsd:enumeration value =" Proto " />
  < xsd:enumeration value =" Port " />
  < xsd:enumeration value =" NeedFrag " />
  < xsd:enumeration value =" SrcRoute " />
  < xsd:enumeration value =" Net Unkn " />
  < xsd:enumeration value =" Host Unkn " />
  < xsd:enumeration value =" Isolated " />
  < xsd:enumeration value =" Net Prohib " />
  < xsd:enumeration value =" Host Prohib " />
  < xsd:enumeration value =" Tos Net " />
  < xsd:enumeration value =" Tos Host " />
  < xsd:enumeration value =" Filter " />
  < xsd:enumeration value =" Host Prec " />
  < xsd:enumeration value =" Prec Xoff " />
  < xsd:enumeration value =" not common " />
  < xsd:enumeration value =" normal " />
  < xsd:enumeration value =" reassembly " />
  < xsd:enumeration value =" in transit " />
  < xsd:enumeration value =" option " />
  < xsd:enumeration value =" length " />
  < xsd:enumeration value =" pointer " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" IcmpData " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element ICMPExtFlow

diagram
description
attributes
uses Does not reference other elements.

used by ExtFlow,
content sequence (default)

source
- < xsd:element name =" ICMPExtFlow " >
  < xsd:complexType />
  </ xsd:element >

Element IP

diagram
description
attributes Proto   SrcIPAddr   Dport   Sport   DstIPAddr   IpId
uses Does not reference other elements.

used by Flow,
content sequence (default)

Attribute Datatype Use Values Default Comments
Proto { xsd:string } optional
SrcIPAddr { IPAddress } optional
Dport { xsd:unsignedShort } optional
Sport { xsd:unsignedShort } optional
DstIPAddr { IPAddress } optional
IpId { xsd:hexBinary } optional

source
- < xsd:element name =" IP " >
- < xsd:complexType >
  < xsd:attribute name =" Proto " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" Dport " use =" optional " type =" xsd:unsignedShort " />
  < xsd:attribute name =" Sport " use =" optional " type =" xsd:unsignedShort " />
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" IpId " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >

Element IPAddrNames

diagram
description
attributes SrcName   DstName   TargetName
uses Does not reference other elements.

used by ArgusFlowRecord,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcName { xsd:string } optional
DstName { xsd:string } optional
TargetName { xsd:string } optional

source
- < xsd:element name =" IPAddrNames " >
- < xsd:complexType >
  < xsd:attribute name =" SrcName " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" DstName " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" TargetName " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element Mac

diagram
description
attributes SrcMacAddr   DstMacAddr   NetProto   Ssap   Dsap
uses Does not reference other elements.

used by Flow,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcMacAddr { EthernetAddress } optional
DstMacAddr { EthernetAddress } optional
NetProto { xsd:string } optional
Ssap { xsd:string } optional
Dsap { xsd:string } optional

source
- < xsd:element name =" Mac " >
- < xsd:complexType >
  < xsd:attribute name =" SrcMacAddr " use =" optional " type =" EthernetAddress " />
  < xsd:attribute name =" DstMacAddr " use =" optional " type =" EthernetAddress " />
  < xsd:attribute name =" NetProto " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" Ssap " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" Dsap " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element MACAddrs

diagram
description
attributes Status   SrcAddr   DstAddr
uses Does not reference other elements.

used by ArgusFlowRecord,
content sequence (default)

Attribute Datatype Use Values Default Comments
Status { xsd:string } optional
SrcAddr { EthernetAddress } required
DstAddr { EthernetAddress } required

source
- < xsd:element name =" MACAddrs " >
- < xsd:complexType >
  < xsd:attribute name =" Status " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcAddr " use =" required " type =" EthernetAddress " />
  < xsd:attribute name =" DstAddr " use =" required " type =" EthernetAddress " />
  </ xsd:complexType >
  </ xsd:element >

Element Metrics

diagram
description
attributes SrcCount   DstCount   SrcBytes   DstBytes   SrcAppBytes   DstAppBytes
uses Does not reference other elements.

used by ArgusFlowRecord,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcCount { xsd:unsignedInt } required
DstCount { xsd:unsignedInt } required
SrcBytes { xsd:unsignedInt } required
DstBytes { xsd:unsignedInt } required
SrcAppBytes { xsd:unsignedInt } required
DstAppBytes { xsd:unsignedInt } required

source
- < xsd:element name =" Metrics " >
- < xsd:complexType >
  < xsd:attribute name =" SrcCount " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstCount " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcAppBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstAppBytes " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >

Element MPLS

diagram
description
attributes SrcLabel   DstLabel
uses Does not reference other elements.

used by FlowEncaps,
content sequence (default)

Attribute Datatype Use Values Default Comments
SrcLabel { xsd:hexBinary } optional
DstLabel { xsd:hexBinary } optional

source
- < xsd:element name =" MPLS " >
- < xsd:complexType >
  < xsd:attribute name =" SrcLabel " use =" optional " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstLabel " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >

Element Rarp

diagram
description
attributes
uses Does not reference other elements.

used by Flow,
content sequence (default)

source
- < xsd:element name =" Rarp " >
  < xsd:complexType />
  </ xsd:element >

Element SrcActive

diagram
description
attributes StdDev   MinUsec   MaxUsec   MeanUsec   n
uses Does not reference other elements.

used by ArgusTimeStats,
content sequence (default)

Attribute Datatype Use Values Default Comments
StdDev { xsd:string } required
MinUsec { xsd:unsignedInt } required
MaxUsec { xsd:unsignedInt } required
MeanUsec { xsd:unsignedInt } required
n { xsd:int } required

source
- < xsd:element name =" SrcActive " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >

Element SrcData

diagram
description
attributes Data-Ascii   Length
uses Does not reference other elements.

used by ArgusUserData,
content sequence (default)

Attribute Datatype Use Values Default Comments
Data-Ascii { xsd:string } required
Length { xsd:string } required

source
- < xsd:element name =" SrcData " >
- < xsd:complexType >
  < xsd:attribute name =" Data-Ascii " use =" required " type =" xsd:string " />
  < xsd:attribute name =" Length " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >

Element SrcIdle

diagram
description
attributes StdDev   MinUsec   MaxUsec   MeanUsec   n
uses Does not reference other elements.

used by ArgusTimeStats,
content sequence (default)

Attribute Datatype Use Values Default Comments
StdDev { xsd:string } required
MinUsec { xsd:unsignedInt } required
MaxUsec { xsd:unsignedInt } required
MeanUsec { xsd:unsignedInt } required
n { xsd:int } required

source
- < xsd:element name =" SrcIdle " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >

Element TCPExtFlow

diagram
description
attributes TCPState   TCPOptions   AckDatauSecs   SynAckuSecs
uses TCPExtMetrics

used by ExtFlow,
content sequence

Attribute Datatype Use Values Default Comments
TCPState { xsd:string } required
TCPOptions { xsd:string } required
AckDatauSecs { xsd:unsignedInt } required
SynAckuSecs { xsd:unsignedInt } required

source
- < xsd:element name =" TCPExtFlow " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" TCPExtMetrics " />
  </ xsd:sequence >
  < xsd:attribute name =" TCPState " use =" required " type =" xsd:string " />
  < xsd:attribute name =" TCPOptions " use =" required " type =" xsd:string " />
  < xsd:attribute name =" AckDatauSecs " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SynAckuSecs " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >

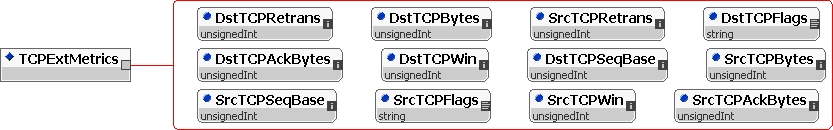

Element TCPExtMetrics

diagram
description
attributes DstTCPRetrans   DstTCPBytes   SrcTCPRetrans   DstTCPFlags   DstTCPAckBytes   DstTCPWin   DstTCPSeqBase   SrcTCPBytes   SrcTCPSeqBase   SrcTCPFlags   SrcTCPWin   SrcTCPAckBytes
uses Does not reference other elements.

used by TCPExtFlow,
content sequence (default)

Attribute Datatype Use Values Default Comments
DstTCPRetrans { xsd:unsignedInt } required
DstTCPBytes { xsd:unsignedInt } required
SrcTCPRetrans { xsd:unsignedInt } required
DstTCPFlags { xsd:string } required
DstTCPAckBytes { xsd:unsignedInt } required
DstTCPWin { xsd:unsignedInt } required
DstTCPSeqBase { xsd:unsignedInt } required
SrcTCPBytes { xsd:unsignedInt } required
SrcTCPSeqBase { xsd:unsignedInt } required
SrcTCPFlags { xsd:string } required
SrcTCPWin { xsd:unsignedInt } required
SrcTCPAckBytes { xsd:unsignedInt } required

source
- < xsd:element name =" TCPExtMetrics " >
- < xsd:complexType >
  < xsd:attribute name =" DstTCPRetrans " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPRetrans " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPFlags " use =" required " type =" xsd:string " />
  < xsd:attribute name =" DstTCPAckBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPWin " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPSeqBase " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPSeqBase " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPFlags " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcTCPWin " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPAckBytes " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >

Element VLAN

diagram
description
attributes Type   SrcVid   DstVid
uses Does not reference other elements.

used by FlowEncaps,
substitution hierarchy VLAN
content sequence (default)

Attribute Datatype Use Values Default Comments
Type { } {} required possible values: 802.1Q
SrcVid { xsd:hexBinary } optional
DstVid { xsd:hexBinary } optional

source
- < xsd:element name =" VLAN " >
- < xsd:complexType >
- < xsd:attribute name =" Type " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" 802.1Q " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SrcVid " use =" optional " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstVid " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >

DataType definitions

Datatype EthernetAddress   defined by restriction

dt base xsd:string
pattern (Broadcast|(([0-9a-fA-F]?[0-9a-fA-F]:){5}[0-9a-fA-F]?[0-9a-fA-F]))

Datatype IPAddress   defined by restriction

dt base xsd:string
pattern ((1?[0-9]?[0-9]|2[0-4][0-9]|25[0-5])\.){3}(1?[0-9]?[0-9]|2[0-4][0-9]|25[0-5])

Original Schema Source

<!--
Generated by XML Authority. Conforms to w3c http://www.w3.org/2001/XMLSchema
   -->
- < xsd:schema >
- < xsd:element name =" ArgusDataStream " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" ArgusFlowRecord " minOccurs =" 0 " maxOccurs =" unbounded " />
  < xsd:element ref =" ArgusManagementRecord " minOccurs =" 0 " maxOccurs =" unbounded " />
  < xsd:element ref =" ArgusDataStream.End " />
  </ xsd:sequence >
  < xsd:attribute name =" BeginDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" BeginTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" BeginTimeusec " use =" required " type =" xsd:int " />
  < xsd:attribute name =" CurrentDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" CurrentTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" CurrentTimeusec " use =" required " type =" xsd:int " />
- < xsd:attribute name =" MajorVersion " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:unsignedByte " >
  < xsd:minInclusive value =" 2 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" MinorVersion " use =" required " type =" xsd:unsignedByte " />
- < xsd:attribute name =" InterfaceType " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" DLT_NULL " />
  < xsd:enumeration value =" DLT_EN10MB " />
  < xsd:enumeration value =" DLT_EN3MB " />
  < xsd:enumeration value =" DLT_AX25 " />
  < xsd:enumeration value =" DLT_PRONET " />
  < xsd:enumeration value =" DLT_CHAOS " />
  < xsd:enumeration value =" DLT_IEEE802 " />
  < xsd:enumeration value =" DLT_ARCNET " />
  < xsd:enumeration value =" DLT_SLIP " />
  < xsd:enumeration value =" DLT_PPP " />
  < xsd:enumeration value =" DLT_FDDI " />
  < xsd:enumeration value =" DLT_ATM_RFC1483 " />
  < xsd:enumeration value =" DLT_RAW " />
  < xsd:enumeration value =" DLT_SLIP_BSDOS " />
  < xsd:enumeration value =" DLT_PPP_BSDOS " />
  < xsd:enumeration value =" DLT_ATM_CLIP " />
  < xsd:enumeration value =" DLT_PPP_SERIAL " />
  < xsd:enumeration value =" DLT_C_HDLC " />
  < xsd:enumeration value =" DLT_IEE802_11 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
- < xsd:attribute name =" InterfaceStatus " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Up " />
  < xsd:enumeration value =" Down " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SourceId " use =" required " type =" xsd:string " />
  < xsd:attribute name =" NetAddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" NetMask " use =" required " type =" IPAddress " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ArgusFlowRecord " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" FlowEncaps " minOccurs =" 0 " />
  < xsd:element ref =" MACAddrs " minOccurs =" 0 " />
  < xsd:element ref =" Flow " />
  < xsd:element ref =" IPAddrNames " minOccurs =" 0 " />
  < xsd:element ref =" FlowAttrs " minOccurs =" 0 " />
  < xsd:element ref =" ExtFlow " minOccurs =" 0 " />
  < xsd:element ref =" Metrics " />
  < xsd:element ref =" ArgusUserData " minOccurs =" 0 " />
  < xsd:element ref =" ArgusTimeStats " minOccurs =" 0 " />
  </ xsd:sequence >
  < xsd:attribute name =" ArgusSourceId " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SequenceNumber " use =" required " type =" xsd:unsignedInt " />
- < xsd:attribute name =" Cause " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Start " />
  < xsd:enumeration value =" Status " />
  < xsd:enumeration value =" Stop " />
  < xsd:enumeration value =" Shutdown " />
  < xsd:enumeration value =" Timeout " />
  < xsd:enumeration value =" Error " />
  < xsd:enumeration value =" Unknown " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" StartDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" StartTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" StartTimeusecs " use =" required " type =" xsd:int " />
  < xsd:attribute name =" LastDate " use =" required " type =" xsd:date " />
  < xsd:attribute name =" LastTime " use =" required " type =" xsd:time " />
  < xsd:attribute name =" LastTimeusecs " use =" required " type =" xsd:int " />
  < xsd:attribute name =" Duration " use =" required " type =" xsd:float " />
  < xsd:attribute name =" TransRefNum " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ArgusManagementRecord " >
  < xsd:complexType />
  </ xsd:element >
- < xsd:element name =" FlowEncaps " >
- < xsd:complexType >
- < xsd:choice >
  < xsd:element ref =" MPLS " />
  < xsd:element ref =" VLAN " />
  </ xsd:choice >
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" MPLS " >
- < xsd:complexType >
  < xsd:attribute name =" SrcLabel " use =" optional " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstLabel " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" VLAN " >
- < xsd:complexType >
- < xsd:attribute name =" Type " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" 802.1Q " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SrcVid " use =" optional " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstVid " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" Flow " >
- < xsd:complexType >
- < xsd:sequence >
- < xsd:choice minOccurs =" 0 " maxOccurs =" unbounded " >
  < xsd:element ref =" ICMP " />
  < xsd:element ref =" Mac " />
  < xsd:element ref =" Arp " />
  < xsd:element ref =" Rarp " />
  < xsd:element ref =" Esp " />
  < xsd:element ref =" IP " />
  </ xsd:choice >
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" IP " >
- < xsd:complexType >
  < xsd:attribute name =" Proto " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" Dport " use =" optional " type =" xsd:unsignedShort " />
  < xsd:attribute name =" Sport " use =" optional " type =" xsd:unsignedShort " />
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" IpId " use =" optional " type =" xsd:hexBinary " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" Esp " >
- < xsd:complexType >
- < xsd:attribute name =" Proto " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" esp " />
  < xsd:enumeration value =" 50 " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
  < xsd:attribute name =" Spi " use =" optional " type =" xsd:unsignedShort " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ICMP " >
- < xsd:complexType >
  < xsd:attribute name =" Proto " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcIPAddr " use =" optional " type =" IPAddress " />
- < xsd:attribute name =" IcmpType " use =" required " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" ECR " />
  < xsd:enumeration value =" UR " />
  < xsd:enumeration value =" SRC " />
  < xsd:enumeration value =" RED " />
  < xsd:enumeration value =" AHA " />
  < xsd:enumeration value =" ECO " />
  < xsd:enumeration value =" RTA " />
  < xsd:enumeration value =" RTS " />
  < xsd:enumeration value =" TXD " />
  < xsd:enumeration value =" PAR " />
  < xsd:enumeration value =" TST " />
  < xsd:enumeration value =" TSR " />
  < xsd:enumeration value =" IRQ " />
  < xsd:enumeration value =" IRR " />
  < xsd:enumeration value =" MAS " />
  < xsd:enumeration value =" MSR " />
  < xsd:enumeration value =" SEC " />
  < xsd:enumeration value =" ROB " />
  < xsd:enumeration value =" TRC " />
  < xsd:enumeration value =" DCE " />
  < xsd:enumeration value =" MHR " />
  < xsd:enumeration value =" WAY " />
  < xsd:enumeration value =" IAH " />
  < xsd:enumeration value =" MRQ " />
  < xsd:enumeration value =" MRP " />
  < xsd:enumeration value =" DNQ " />
  < xsd:enumeration value =" NDP " />
  < xsd:enumeration value =" SKP " />
  < xsd:enumeration value =" PHO " />
  < xsd:enumeration value =" UNK " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" DstIPAddr " use =" optional " type =" IPAddress " />
- < xsd:attribute name =" IcmpCode " use =" optional " >
- < xsd:simpleType >
- < xsd:restriction base =" xsd:NMTOKEN " >
  < xsd:enumeration value =" Net " />
  < xsd:enumeration value =" Host " />
  < xsd:enumeration value =" Proto " />
  < xsd:enumeration value =" Port " />
  < xsd:enumeration value =" NeedFrag " />
  < xsd:enumeration value =" SrcRoute " />
  < xsd:enumeration value =" Net Unkn " />
  < xsd:enumeration value =" Host Unkn " />
  < xsd:enumeration value =" Isolated " />
  < xsd:enumeration value =" Net Prohib " />
  < xsd:enumeration value =" Host Prohib " />
  < xsd:enumeration value =" Tos Net " />
  < xsd:enumeration value =" Tos Host " />
  < xsd:enumeration value =" Filter " />
  < xsd:enumeration value =" Host Prec " />
  < xsd:enumeration value =" Prec Xoff " />
  < xsd:enumeration value =" not common " />
  < xsd:enumeration value =" normal " />
  < xsd:enumeration value =" reassembly " />
  < xsd:enumeration value =" in transit " />
  < xsd:enumeration value =" option " />
  < xsd:enumeration value =" length " />
  < xsd:enumeration value =" pointer " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:attribute >
  < xsd:attribute name =" IcmpData " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" Arp " >
- < xsd:complexType >
  < xsd:attribute name =" SrcArpAddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" TargetArpAaddr " use =" required " type =" IPAddress " />
  < xsd:attribute name =" ArpMacAddr " use =" required " type =" EthernetAddress " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" Rarp " >
  < xsd:complexType />
  </ xsd:element >
- < xsd:element name =" Mac " >
- < xsd:complexType >
  < xsd:attribute name =" SrcMacAddr " use =" optional " type =" EthernetAddress " />
  < xsd:attribute name =" DstMacAddr " use =" optional " type =" EthernetAddress " />
  < xsd:attribute name =" NetProto " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" Ssap " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" Dsap " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" FlowAttrs " >
- < xsd:complexType >
  < xsd:attribute name =" Status " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcOptions " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" DstOptions " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcTOS " use =" required " type =" xsd:hexBinary " />
  < xsd:attribute name =" DstTOS " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcTTL " use =" required " type =" xsd:string " />
  < xsd:attribute name =" DstTTL " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" MACAddrs " >
- < xsd:complexType >
  < xsd:attribute name =" Status " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" SrcAddr " use =" required " type =" EthernetAddress " />
  < xsd:attribute name =" DstAddr " use =" required " type =" EthernetAddress " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ExtFlow " >
- < xsd:complexType >
- < xsd:choice >
  < xsd:element ref =" TCPExtFlow " />
  < xsd:element ref =" ICMPExtFlow " />
  < xsd:element ref =" FragExtFlow " />
  < xsd:element ref =" EspExtFlow " />
  </ xsd:choice >
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" TCPExtFlow " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" TCPExtMetrics " />
  </ xsd:sequence >
  < xsd:attribute name =" TCPState " use =" required " type =" xsd:string " />
  < xsd:attribute name =" TCPOptions " use =" required " type =" xsd:string " />
  < xsd:attribute name =" AckDatauSecs " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SynAckuSecs " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ICMPExtFlow " >
  < xsd:complexType />
  </ xsd:element >
- < xsd:element name =" FragExtFlow " >
  < xsd:complexType />
  </ xsd:element >
- < xsd:element name =" EspExtFlow " >
- < xsd:complexType >
  < xsd:attribute name =" SrcEspLastSeq " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcEspDroppedPkts " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstEspLastSeq " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstEspDroppedPkts " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" TCPExtMetrics " >
- < xsd:complexType >
  < xsd:attribute name =" DstTCPRetrans " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPRetrans " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPFlags " use =" required " type =" xsd:string " />
  < xsd:attribute name =" DstTCPAckBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPWin " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstTCPSeqBase " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPSeqBase " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPFlags " use =" required " type =" xsd:string " />
  < xsd:attribute name =" SrcTCPWin " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcTCPAckBytes " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" Metrics " >
- < xsd:complexType >
  < xsd:attribute name =" SrcCount " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstCount " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" SrcAppBytes " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" DstAppBytes " use =" required " type =" xsd:unsignedInt " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ArgusTimeStats " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" SrcActive " minOccurs =" 0 " />
  < xsd:element ref =" SrcIdle " minOccurs =" 0 " />
  < xsd:element ref =" DstActive " minOccurs =" 0 " />
  < xsd:element ref =" DstIdle " minOccurs =" 0 " />
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" SrcActive " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" DstActive " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" SrcIdle " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" DstIdle " >
- < xsd:complexType >
  < xsd:attribute name =" StdDev " use =" required " type =" xsd:string " />
  < xsd:attribute name =" MinUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MaxUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" MeanUsec " use =" required " type =" xsd:unsignedInt " />
  < xsd:attribute name =" n " use =" required " type =" xsd:int " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ArgusUserData " >
- < xsd:complexType >
- < xsd:sequence >
  < xsd:element ref =" SrcData " minOccurs =" 0 " />
  < xsd:element ref =" DstData " minOccurs =" 0 " />
  </ xsd:sequence >
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" SrcData " >
- < xsd:complexType >
  < xsd:attribute name =" Data-Ascii " use =" required " type =" xsd:string " />
  < xsd:attribute name =" Length " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" DstData " >
- < xsd:complexType >
  < xsd:attribute name =" Data-Ascii " use =" required " type =" xsd:string " />
  < xsd:attribute name =" Length " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" IPAddrNames " >
- < xsd:complexType >
  < xsd:attribute name =" SrcName " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" DstName " use =" optional " type =" xsd:string " />
  < xsd:attribute name =" TargetName " use =" optional " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:element name =" ArgusDataStream.End " >
- < xsd:complexType >
  < xsd:attribute name =" count " use =" required " type =" xsd:string " />
  </ xsd:complexType >
  </ xsd:element >
- < xsd:simpleType name =" IPAddress " >
- < xsd:restriction base =" xsd:string " >
  < xsd:maxLength value =" 15 " />
  < xsd:minLength value =" 7 " />
  < xsd:pattern value =" ((1?[0-9]?[0-9]|2[0-4][0-9]|25[0-5])\.){3}(1?[0-9]?[0-9]|2[0-4][0-9]|25[0-5]) " />
  </ xsd:restriction >
  </ xsd:simpleType >
- < xsd:simpleType name =" EthernetAddress " >
- < xsd:restriction base =" xsd:string " >
  < xsd:maxLength value =" 17 " />
  < xsd:minLength value =" 9 " />
  < xsd:pattern value =" (Broadcast|(([0-9a-fA-F]?[0-9a-fA-F]:){5}[0-9a-fA-F]?[0-9a-fA-F])) " />
  </ xsd:restriction >
  </ xsd:simpleType >
  </ xsd:schema >
